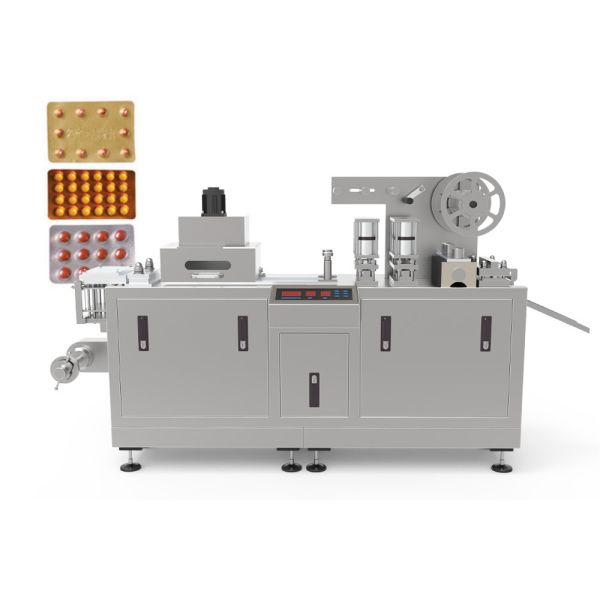

DPP-88 Automatic Blister Packing MachineDPP-88 Automatic Blister Packing Machine
We look forward to cooperating with you, any questions, please feel free to let me know.
Products Description
The machine is new product which is improved based on customer’s requirements. It’s suitable for packaging of all kinds of liquid and solid in
medium & small pharmaceutical factory, health medicine factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc.
It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to
produce small quality and many kinds of products.
Feature:
1. Travel scope can be adjusted. Mould is located by located groove so that it’s easy to change mould. The machine heats the PVC through
conduction and forms it through pressing and frothing.
2. The material is fed automatically. The mould and feeding equipment can be designed as user’s requirements.
3. The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the
machine’s life.
4. The equipment of trace pressing, batch number printing and scrap-collecting can be chose.
5. Manipulator grip and tow wrapper, straight to-and-fro running, synchronize accurately and stably.
6. Speed is shifted by step-less transducer; the operation panel of PC cycle (can be Adopt interface of human-machine).
Installation and after sales service:
Installing and Commission: We will install and test the machine in best working condition before shipment.
If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there.
All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be
payable by you. In case the stay of our technician, the service charges US $ 100 per day will be charged extra.
Technical Parameter
|
Model
|
DPP-88 |
|
Blanking Frequency
|
15-40Punches/min
|
|
Sheet’s quantity of one blanking
|
1 sheets
|
|
Capacity
|
900-2100sheets/hour
|
|
Adjustable scope of feed travel
|
10-110mm
|
|
Max. Forming
|
120*110*15mm
|
|
Power Supply
|
380V 50Hz 5.5Kw
|
|
Overall Dimensions
|
1650*500*1100mm
|
|
Wrapper Specification(PVC)
|
120×(0.15-0.5)mm
|
| Overall Dimension |
1500*1300*1650mm |
|
Packaging Dimension
|
1800*650*1250mm
|
|
Weight
|
650Kg
|
Detail picture
